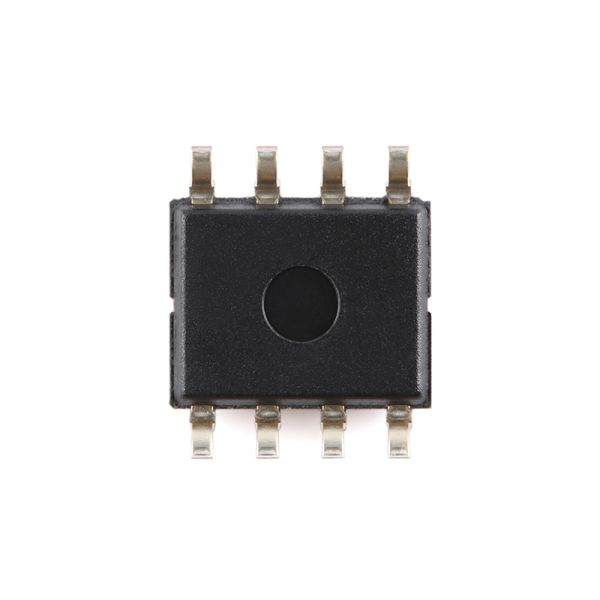

M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz
M95080-WMN6TP 8-Kbit Serial SPI Bus EEPROM With High-speed Clock 2.5V~5.5V 20MHz
Product Variants
M95080-W M95080-R M95080-DF
Key Features
- Compatible with the Serial Peripheral Interface (SPI) bus
- Memory array:
- 8 Kb (1 Kbyte) of EEPROM
- Page size: 32 bytes
- Additional Write lockable Page (Identification page)
- Write performance:
- Byte Write within 5 ms
- Page Write within 5 ms
- Write Protect: quarter, half or whole memory array
- High-speed clock: 20 MHz
- Single supply voltage:
- 2.5 V to 5.5 V for M95080-W
- 1.8 V to 5.5 V for M95080-R
- 1.7 V to 5.5 V for M95080-DF
- Operating temperature range: -40°C to +85°C
- Enhanced ESD protection
- More than 4 million Write cycles
- More than 200-year data retention
Signal Pin Configuration
| Signal Name |
Function |
Direction |
| C |
Serial Clock |
Input |
| D |
Serial Data Input |
Input |
| Q |
Serial Data Output |
Output |
| S |
Chip Select |
Input |
| W |
Write Protect |
Input |
| HOLD |
Hold |
Input |
| VCC |
Supply voltage |
- |
| VSS |
Ground |
- |
