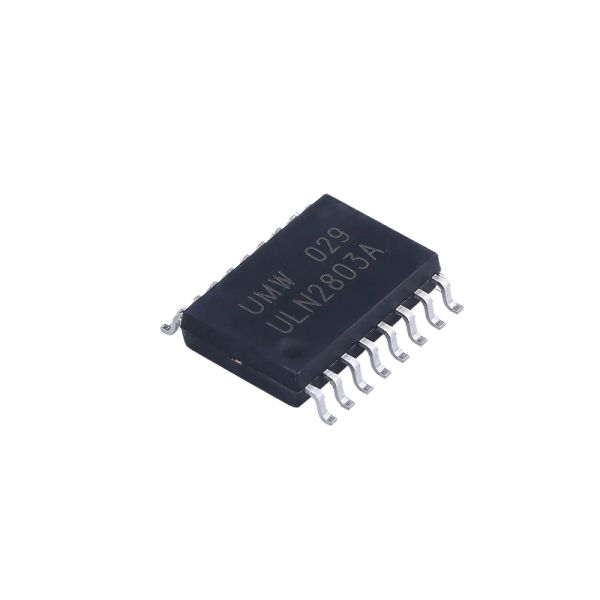

ULN2803A High-Voltage High-Current Darlington Driver IC with 8 NPN Darlington Pairs for Power Management

Product Categories

Shenzhen Filetti Technology Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : UMW

Model Number : ULN2803A

Certification : rohs

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Collector- Emitter Voltage VCEO Max : 50V

Maximum DC Collector Current : 500mA

Maximum input voltage (VI) : 30V

Operating Temperature : -40℃~+85℃

Collector leakage current (Icex) : 20uA

Input current (on) : 0.93mA

Contact Now

ULN2803A is high-voltage high-current darlington driver IC composed of 8 NPN darlington pairs

Features

Pin Description

Pin Name	Pin	Type	Description
<1:8>	1-8	Input	Channel 1~8 darlington input
<11:18>	18-11	Output	Channel 1~8 darlington output
(GND)	9	GND	Ground
COM	10	Input/ Output	Positive of clamp diode (used with inductive load)
1O

ULN2803A High-Voltage High-Current Darlington Driver IC with 8 NPN Darlington Pairs for Power Management

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?: We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?: Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?: Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?: Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
